Dubai’s summer heat isn’t a season — it’s a lifestyle constraint. With temperatures pushing past 45°C, a properly executed split AC installation is the difference between a comfortable home and an unlivable one. Yet most homeowners don’t realize that a poorly installed split AC unit can cut its lifespan in half and spike DEWA bills by 20–30%.
What Is Split AC Installation?
A split AC system has two components: an indoor evaporator unit mounted on a wall, and an outdoor condenser unit placed on a balcony, ledge, or exterior wall. Installation connects the two via refrigerant piping, drainage tubing, and electrical wiring, then tests the system for correct cooling.
Unlike window units, split AC installation requires licensed technicians because it involves refrigerant handling, drilling, and precise electrical work. DIY attempts almost always void the manufacturer’s warranty — a key reason “split AC installation near me” ranks among the most-searched HVAC terms in the UAE.
The Split AC Installation Process, Step by Step
- Site survey and unit sizing — Technicians assess room size, sunlight exposure, and ceiling height to recommend the correct tonnage. Undersized units overwork; oversized units cool unevenly and waste energy.

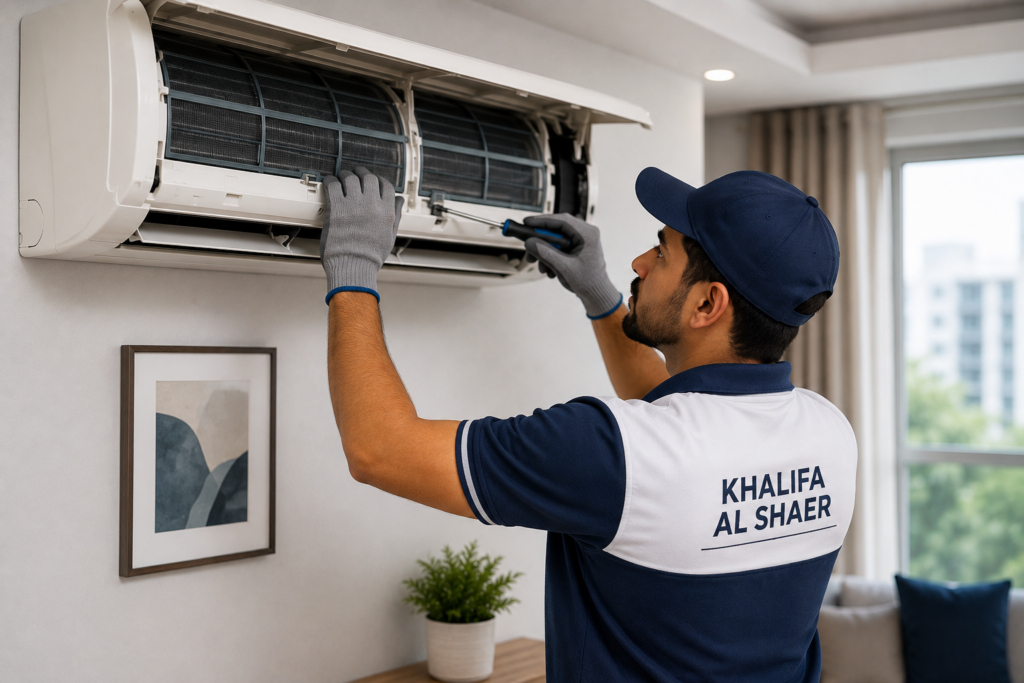

- Indoor unit mounting — The wall bracket is leveled at a height that ensures even air distribution, away from direct sunlight and heat sources.

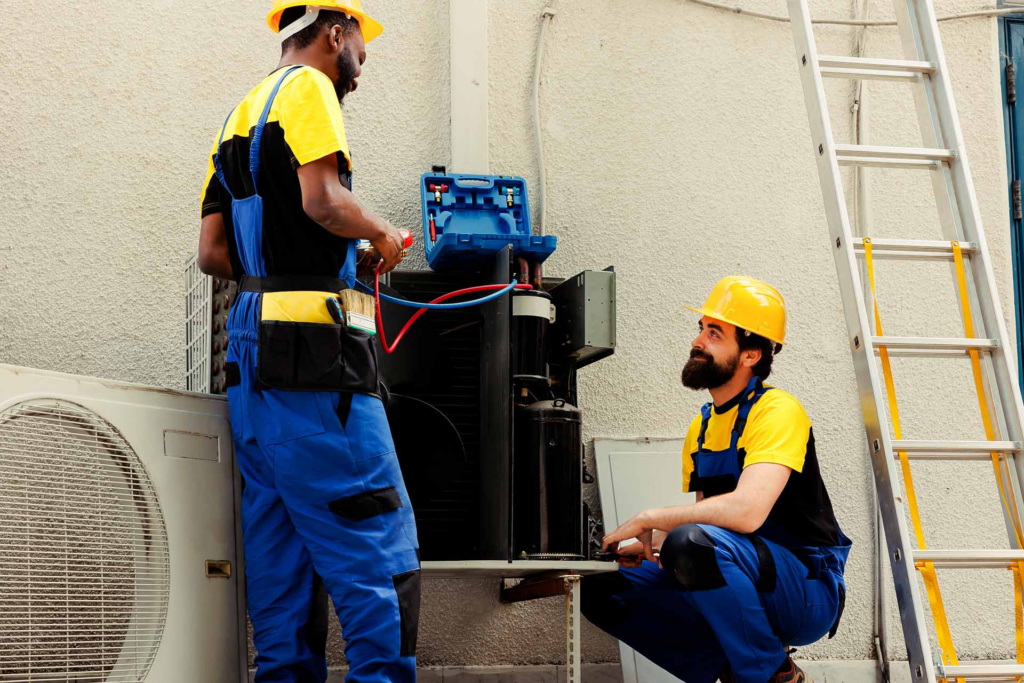

- Outdoor unit placement — The condenser is installed on a stable surface with at least 30cm of airflow clearance on all sides, ideally shaded from direct sun.
- Piping and wiring — Copper refrigerant pipes, drainage tubing, and electrical cables are routed, sealed, and insulated between the two units.
- Vacuuming and gas charging — The pipeline is vacuumed to remove air and moisture, then charged with the correct refrigerant (R32 or R410A) per manufacturer specs. If a unit later develops cooling issues, our AC gas refill and leak-fixing service resolves them quickly.
- Testing and commissioning — The system is tested for cooling performance, drainage, noise, and thermostat accuracy before final sign-off.
Requirements Before You Book Installation
- Building/DEWA approval — Many Dubai towers require an NOC before drilling exterior walls for outdoor unit brackets.
- Correct unit capacity — A general rule is 800 BTU per square metre in Dubai’s climate, adjusted for sun exposure and occupancy.
- Outdoor space access — Balcony, ledge, or wall access must be confirmed, especially in villas or older buildings.
- Electrical readiness — A dedicated, correctly rated circuit breaker is required; older properties may need an electrician’s input first.
- Drainage planning — Condensate drainage must slope correctly to prevent water leakage into walls or ceilings — one of the most common installation faults.
- Post-installation care — Schedule a periodic deep-clean AC service every 3–6 months to maintain efficiency and prevent dust buildup in Dubai’s dusty climate.
Expert Tips From Khalifa Al Shaer’s Technicians
- Use brand-authorized parts only — non-standard piping is the leading cause of early gas leaks.
- Insulate every joint — uncovered copper joints lose cooling efficiency and cause condensation damage.
- Prioritize shaded outdoor placement — a condenser under direct sun works harder and wears out faster.
- Book before peak summer — March–April installation avoids the June–August rush.
- Request a walkthrough — a reliable technician explains thermostat settings, filter care, and maintenance schedules before leaving.
Frequently Asked Questions
1. How long does a split AC installation take in Dubai?
A standard installation takes 2–4 hours per unit, depending on wall type, pipe routing distance, and outdoor access. High-rise installations may take longer due to access requirements.
2. What size split AC do I need for my room?
A general guide is 800 BTU per square metre in Dubai’s climate, adjusted for sunlight, ceiling height, and occupancy. An on-site technician assessment gives the most accurate sizing.
3. Can I install a split AC myself to save money?
It’s not recommended. Installation involves refrigerant handling and electrical work requiring licensed technicians. DIY installation often voids the warranty and risks gas leaks or water damage. If you’re replacing an old unit, our AC uninstallation service safely removes it before the new install.
4. Do I need approval to install AC in my Dubai apartment?
Many towers require an NOC from building management before drilling exterior walls. Villas have more flexibility, but confirming with management beforehand is recommended.
5. How much does a split AC installation cost in Dubai?
Cost depends on unit tonnage, wall type, and piping distance. Khalifa Al Shaer offers transparent, upfront quotes with no hidden fees — contact us for a same-day quote.
Why Choose Khalifa Al Shaer
With 33+ years of experience and 25+ factory-trained technicians, Khalifa Al Shaer installs all major brands — LG, Samsung, Carrier, Blue Star, and Super General — with same-day service and transparent, upfront pricing. For year-round peace of mind, ask about our VIP Premium AC Package, which bundles installation with scheduled maintenance visits.
